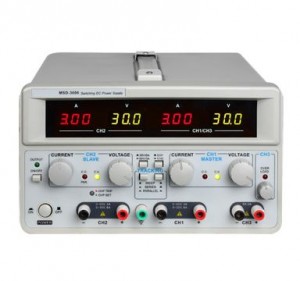

Switching DC Power Supply

Switching-DC-Power-Supply

●CH1/CH2 dual-range output of 30V/6A or 60V/3A

●CH3 adjustable output: 0.1~5V/3A

●Auto series/parallel tracking operation, providing flexible output of 30V/12A, 60V/6A or 120V/3A

●Improving the power efficiency by 25% than traditional power supply

●Manual and remote ON/OFF control

●Multiple protections: OVP, OTP, OLP and reverse polarity protection

●Automatically switching AC115V/230V source

●Fan speed control circuit, minimizing fan acoustic noise

Model		MSD-3606
Channel		CH1&CH2 Independent mode	CH1&CH2 Series mode	CH1&CH2 Parallel mode	CH3
Output ratings		0~30V/0~6A; 0~60V/0~3A	0~60V/0~6A; 0~120V/0~3A	0~30V/0~12A; 0~60V/0~6A	0.1~5V/3A
Voltage	Line regulation	≤0.01%+3mV
	Load regulation	≤0.01%+5mV (rating current≤6A); ≤0.01%+8mV (rating current≤12A)
	Ripple & Noise	≤5mV rms(5Hz~1MHz);≤50mVpp(20Hz~20MHz)
	Recovery time	≤100us(50% load change,minimum load 0.5A)
Current	Line regulation	≤0.2%+3mA
	Load regulation	≤0.2%+3mA
	Ripple & Noise	≤3mA rms
Tracking Operation	Tracking error	≤0.5%+10mV of the master
	Series regulation	≤300mV
	Ripple & Noise	≤10mVrms(5Hz~1MHz); ≤100mVpp(20Hz~20MHz)
Output On/Off Response Time	Voltage up (10%~90%)	≤100ms(≤95% rating load)
	Voltage down(90%~10%)	≤100ms (≥10% rating load)
OVP Accuracy		±(0.5% of reading+0.5V)
Meter	Type	3½ digits 0.39″ LED display
	Accuracy	±(0.5% of reading +2 digits)
	Resolution	100mV/10mA
Protection		OVP,OTP,OLP,reverse polarity protections
Remote control		Output On/Off
Fan noise		≤50dB
Temperature co-efficient		Voltage:≤100ppm/℃+3mV Current:≤150ppm/℃+3mA
Insulation		Between chassis and output terminal:≥100MΩ/1000VDC Between chassis and AC cord:≥100MΩ/1000VDC
Power source		AC 115V/230V±15%,50/60Hz
Accessories		Operation manual ×1, Power cord ×1
Dimension		310(D)×250(W)×150(H)mm
Weight		5.5kg
