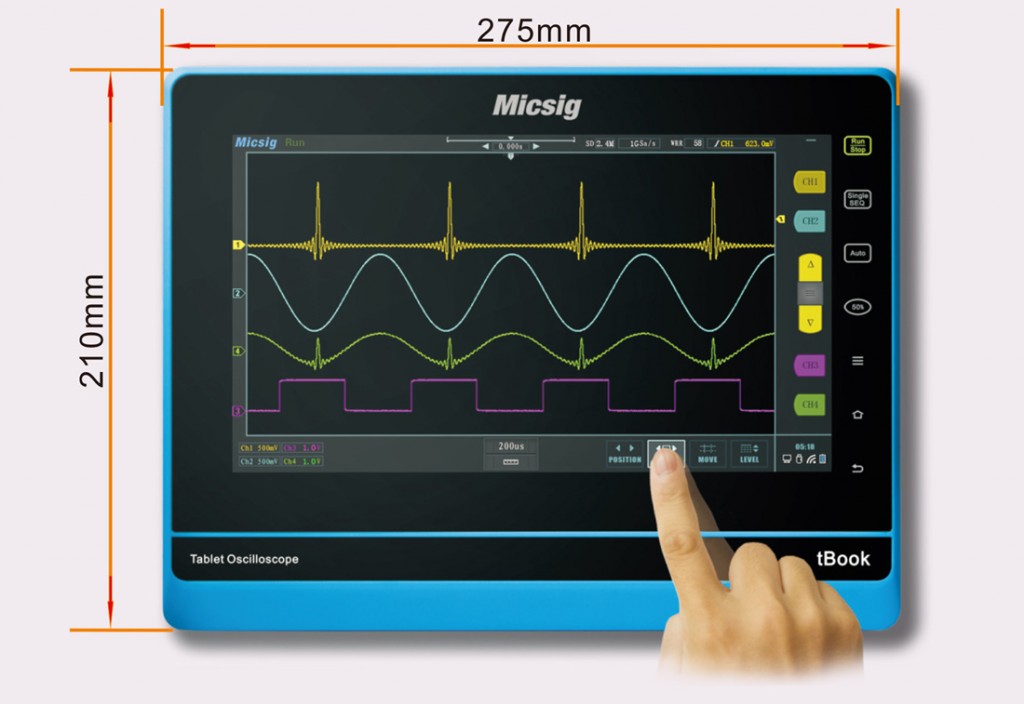

Tablet Oscilloscope
tBook Series
Model
|
Bandwidth
|
Real time sampling rate
|
Rise time
|
Memory depth
|
Channel
|
Touch
operation
|
Max waveform
capture rate
|
Serial bus
decode
|
| TO72 |
70MHz |
1GS/s |
≤5ns |
18M/9M |
2CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO74 |
70MHz |
1GS/s |
≤5ns |
18M/9M |
4CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO102 |
100MHz |
1GS/s |
≤3.5ns |
18M/9M |
2CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO104 |
100MHz |
1GS/s |
≤3.5ns |
18M/9M |
4CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO152 |
150MHz |
1GS/s |
≤2.33ns |
18M/9M |
2CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO154 |
150MHz |
1GS/s |
≤2.33ns |
18M/9M |
4CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO202 |
200MHz |
1GS/s |
≤1.75ns |
18M/9M |
2CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO204 |
200MHz |
1GS/s |
≤1.75ns |
18M/9M |
4CH |
YES |
200,000wfms/s(Optional) |
Optional |
| TO302 |
300MHz |
2GS/s |
≤1.17ns |
18M/9M |
2CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO304 |
300MHz |
2GS/s |
≤1.17ns |
18M/9M |
4CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO352 |
350MHz |
2GS/s |
≤1ns |
18M/9M |
2CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO354 |
350MHz |
2GS/s |
≤1ns |
36M/18M/9M |
4CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO502 |
500MHz |
5GS/s |
≤700ps |
36M/18M |
2CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO504 |
500MHz |
5GS/s |
≤700ps |
36M/18M/9M |
4CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO602 |
600MHz |
5GS/s |
≤583ps |
45M/22.5M |
2CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO604 |
600MHz |
5GS/s |
≤583ps |
45M/22.5M |
4CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO1002 |
1GHz |
5GS/s |
≤350ps |
45M/22.5M |
2CH |
YES |
400,000wfms/s(Optional) |
Optional |
| TO1004 |
1GHz |
5GS/s |
≤350ps |
45M/22.5M |
4CH |
YES |
400,000wfms/s(Optional) |
Optional |
|

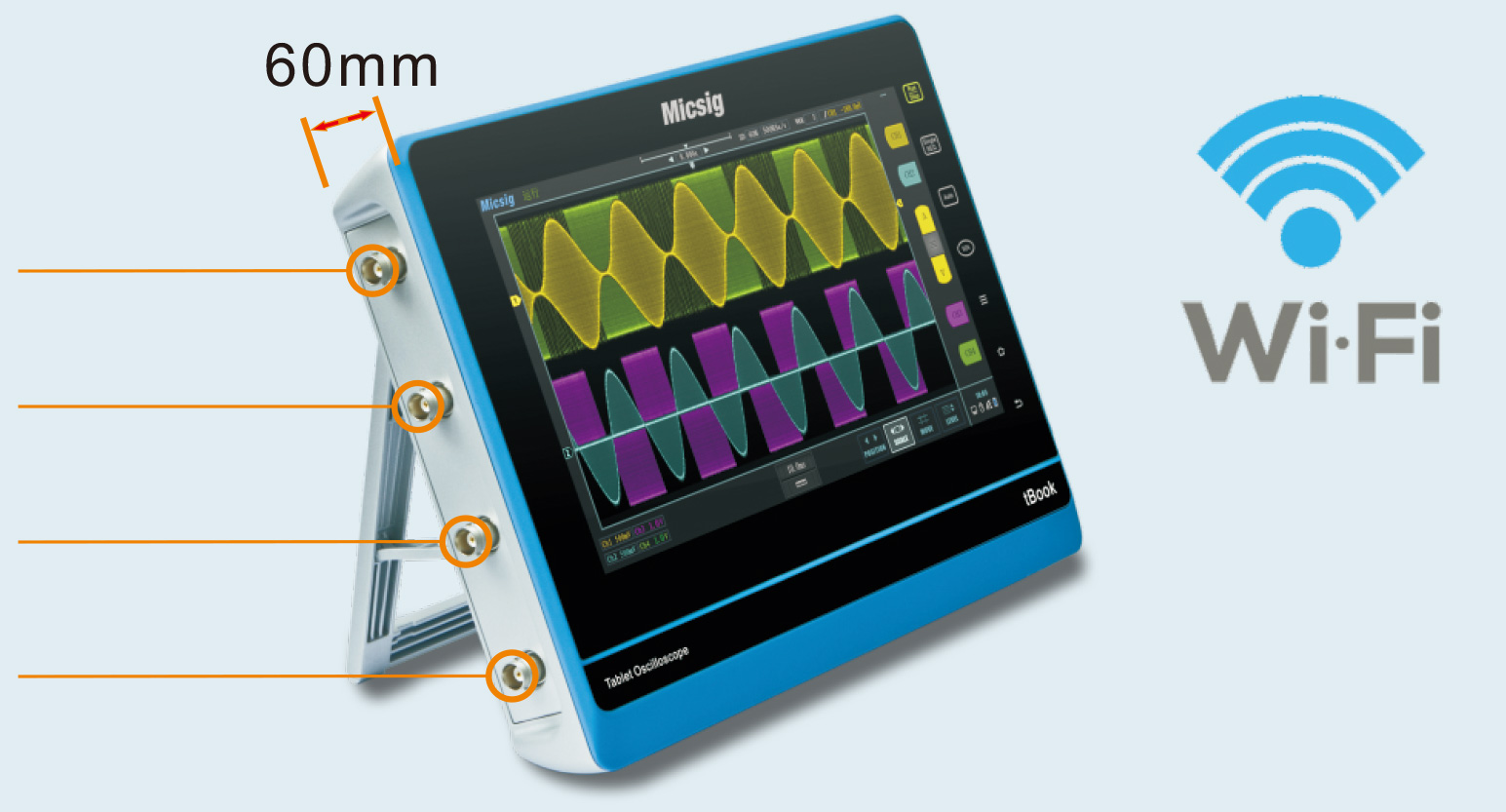

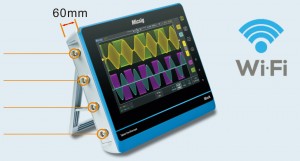

Four isolated inputs (optional) , and all isolated inputs allow independent
floating measurements with each input.
