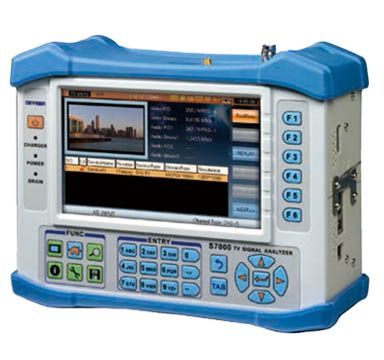

TV Spectrum Analyzer
Tv-Spectrum-Analyzer
Model: S7000
Features:
●7″ TFT LCD Display
●All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2
●Digital/Analog TV and Satellite TV analysis
●MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input
●Fast spectrum analysis with 5~2150 MHz frequency span DSP Technology to support different Video decoding: MPEG-2,MPEG-4 and H.264 for 1080i, 720p and 576i, support PAL/NTSC/ SECAM color system
●DVB-CI module (Conditional Access) for encrypted channels
●TS-ASI input and output; TS record and TS replay
●HDMI, LAN and USB interface; IPTV analysis and GPS option
●Working time > 5 hours (battery)
Specifications:
| Spectrum Analyzer | |
| Frequency Range | 5MHz~1050MHz(TV),950 MHz~2150 MHz(Satellite) |
| Frequency Span | 1 MHz~1045MHz(TV),10 MHz~1200 MHz(Satellite) |
| Frquency Step | 10kHz(TV),1MHz (Satellite) |
| Resolution Bandwidth (-3dB) | 30kHz,100kHz, 300kHz,1MHz,3MHz(TV)1MHz,3MHz Auto Select (Satellite) |
| Level Measurement Range | 10dBμV~120dBμV(TV)30dBμV~120dBμV(Satellite) |
| Accuracy Of Measurements | <1.5dB |
| Measurement Detector | Peak, sample, AVG(TV),No Select for Satellite |
| Reference Level | 30dBμV~120dBμV |
| Markers | 2(TV)1(Satellite) |
| Analogue TV Measurement | |
| Standards | B/G, I, D/K, L/L´, M/N |
| Colour Standards | PAL,SECAM, NTSC |
| Frequency Step | 10kHz |
| Hum Measurement | >50dB |
| C/N | >50dB |
| Level Measurement Range | 30dBμV~120 dBμV |
| Digital CATV Measurement | |
| Modulation Type | 16/32/64/128/256 QAM ITU-T J.83 ANNEX A/B/C |
| Symbol Rate | 4.0MS/s~7.0MS/s |
| Power Level Range | 30dBμV~110dBμV |
| DVB-T/H Measurement | |
| Modulation Type | QPSK,16QAM,64QAM |
| Power Level Range | 25dBμV~110dBμV |
| DVB-T2 Measurement | |
| Modulation Type | QPSK,16QAM, 64QAM,256QAM |
| Power Level Range | 25dBμV~110dBμV |
| ATSC Measurement | |
| Modulation Type | 8VSB |
| Power Level Range | 25dBμV~ 110dBμV |
| DTMB Measurement | |
| Carriers | C=1, 3780 |
| Power Level Range | 25dBμV~110dBμV |
| DVB-S/S2 Measurement | |
| Modulation Type | QPSK,8PSK |
| Symbol Rate | 2-45 MS/s(DVB-S) 1-45 MS/s(QPSK DVB-S2) 1-45 MS/s(8PSK DVB-S2) |
| Power Level Range | 40-110dBμV |
| Video/Audio Decoder | |
| Video | MPEG1/2/4,H.264 |
| Video Resolution | 1080i, 720p and 576i |
| Audio | MPEG1/2/4,AAC |
| En 50083-9(DVB SPI, ASI) | |
| DVB-ASI Interface | 75 ΩBNC |
| DVB-ASI Clock | 270MHz |
| DVB-ASI Max Data Rate | 0 to72 Mbps |
| Interface | RF Input,USB, LAN,DVB-CI,TS-ASI Input/Output,DC Supply Input,GPS Input |
| General | |
| Display | 7 inches TFT LCD 800 × 480 pixels |
| Dimension(W×H×L) | 245mm ×194 mm ×105mm |
| Weight Around | 2.8kg |
